What Is a Bus Duct and How Does It Work?
Electricity demand is rising, and distribution systems must carry more power safely. The IEA’s Electricity 2024 report projects global electricity demand to grow by about 3.4% annually through 2026. That growth affects factories, hospitals, offices, and data centers. Space is limited. Reliability cannot be optional.

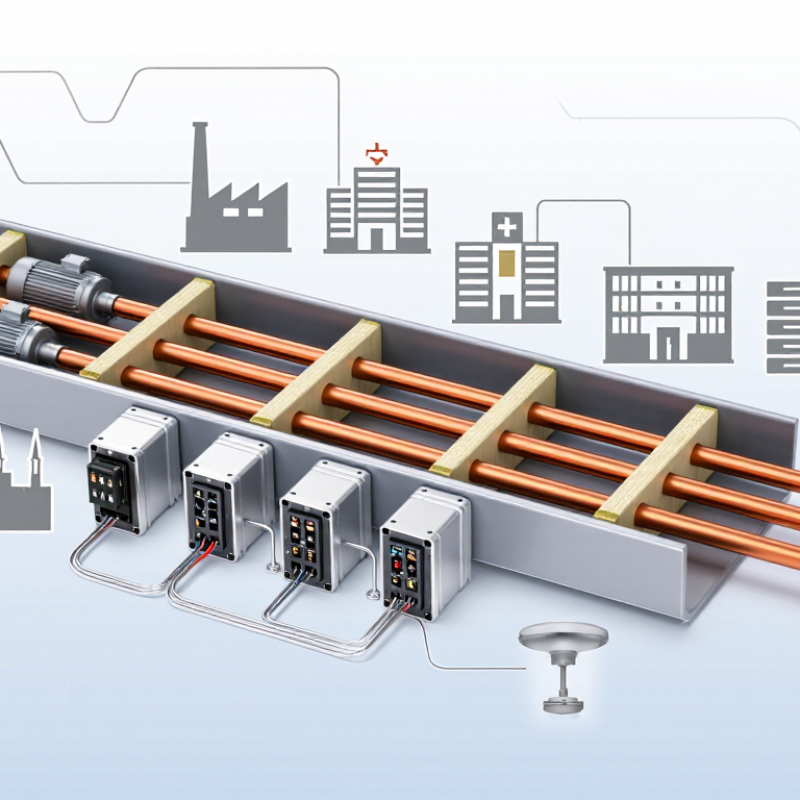

This is where Bus Duct becomes valuable. A Bus Duct, also called a busway, uses enclosed copper or aluminum conductors to distribute electrical power. The conductors sit inside a protective metal housing. Tap-off boxes connect equipment at selected points along the route. This design can reduce cable congestion and simplify future capacity changes.
Its operation is straightforward. Power enters through a feeder section. Conductors carry the current through the enclosure. Plug-in units then deliver power to motors, panels, lighting systems, or machinery. Engineers select the system by considering voltage, current rating, short-circuit withstand, heat dissipation, and installation conditions.
Safety still depends on disciplined design.
IEC 61439-6 provides requirements for low-voltage busbar trunking systems. However, compliance with a standard does not remove every project risk. Poor joint tightening, inadequate protection, or incorrect tap-off installation can create dangerous heat. Field inspections should verify torque settings, insulation clearances, grounding continuity, and enclosure integrity.
The U.S. Department of Energy continues to emphasize efficient electrical distribution within high-performance buildings. Yet efficiency claims require measurement, not assumptions. A properly specified Bus Duct can improve layout flexibility and maintenance access, but it is not automatically the best solution for every facility. Understanding its construction and operating limits is essential before selecting one.
What Is a Bus Duct?
A bus duct, also called a busway, is a factory-built electrical distribution system. It contains conductive metal bars inside a grounded protective enclosure. These bars carry electrical power between equipment, floors, or large work areas. Unlike bundles of separate cables, a bus duct provides a compact and organized route.
Its operation is straightforward. Power enters through an incoming connection and travels along the busbars. Tap-off units can draw power at selected points. Joints connect each section, while insulation separates the conductors and limits accidental contact. The enclosure also helps protect the bars from dust, impact, and mechanical damage. A properly rated system can handle high current with less installation congestion.
Field experience shows that design drawings are not enough. Real spaces may contain beams, pipes, or access restrictions. An engineer should verify clearances, temperature conditions, fault ratings, and joint alignment before installation. A small measurement error can create expensive rework. Maintenance staff should inspect connections for heat marks, loose hardware, or unusual noise.
Tips: Choose the rating from measured load data, not guesswork. Check expansion, moisture, and fire-separation requirements. Keep access points reachable. Never treat a bus duct as maintenance-free.
How Bus Ducts Are Designed and Constructed
A bus duct is an enclosed power distribution system built from metal housing and insulated conductors. Its design begins with the expected load, voltage, fault current, and installation environment. Engineers select copper or aluminum conductors after checking capacity, heat rise, voltage drop, and mechanical strength. The enclosure also needs a reliable protective earth path.
Construction usually starts with straight sections, elbows, flanges, and connection units. Conductors are positioned inside the housing with carefully measured insulation clearances. In compact designs, the conductors sit close together to reduce space and magnetic effects. Air-insulated designs allow more room for cooling. The choice affects size, cost, maintenance, and installation tolerance.
Joints deserve serious attention. Each joint must maintain electrical continuity and withstand vibration, moisture, and thermal expansion. Bolted connections are tightened to a specified torque, then inspected before energizing. Tap-off points are placed where equipment may need power, but their spacing must match the load and safety requirements. In real projects, a layout can appear correct on paper yet create difficult access near columns or ceilings. That weakness should be challenged during field reviews. Small measurement errors matter. A poorly aligned section may stress the joint, damage insulation, or delay commissioning. Testing commonly includes insulation resistance, phase identification, grounding continuity, and visual checks for enclosure damage. Good documentation records these results and any correction made onsite.
How Electrical Power Flows Through a Bus Duct
What Is a Bus Duct and How Does It Work?
How Electrical Power Flows Through a Bus Duct
A bus duct carries electrical power through enclosed copper or aluminum conductors. Power enters at a feeder connection, then travels along insulated busbars. Tap-off boxes draw current at selected points. This design reduces cable congestion and supports flexible load expansion.
The flow is simple, but the engineering is not. Current creates heat, magnetic fields, and voltage drop. Engineers therefore check ampacity, short-circuit withstand, enclosure protection, and joint temperature. IEC 61439-6 covers low-voltage busbar trunking systems and their verification requirements. The International Energy Agency reported that data centers used about 460 TWh of electricity in 2022. Demand could exceed 1,000 TWh by 2026. Reliable power distribution matters more as electrical loads grow.
In real installations, a loose joint can become a hot spot. Poor alignment can increase resistance. I have seen clean drawings hide difficult maintenance access. That lesson deserves attention. Bus ducts should be inspected for torque, insulation damage, discoloration, and blocked ventilation. Thermal derating also matters in crowded plant rooms.
Tips: Keep tap-off units within their rated current. Confirm fault ratings before energizing. Use infrared inspections under normal load. Leave working clearance around joints and access covers. Small oversights become expensive.
Types of Bus Duct Systems and Their Applications
A bus duct is a factory-built enclosure carrying insulated or bare conductors through copper or aluminum bars. Its system type determines safety, flexibility, and installation cost. Under IEC 61439-6, busbar trunking assemblies require verified design performance, temperature-rise testing, and fault withstand checks.
Non-segregated phase bus duct places conductors in one common enclosure. It suits commercial buildings, workshops, and short industrial feeders where space matters. Segregated phase systems separate each phase with metal barriers, reducing the chance of phase-to-phase faults. They are often selected for high-current switchgear connections. Isolated phase bus duct gives every phase its own grounded enclosure and air clearance. It supports large generators, utility substations, and critical power paths.
Plug-in bus duct includes tap-off points along its length. A maintenance team can connect a panel near a production line without installing a new cable run. Feeder bus duct has fewer access points and carries power between major electrical rooms. Data centers increasingly need adaptable distribution. The IEA’s Electricity 2024 report projects global data-center electricity use could exceed 1,000 TWh by 2026, increasing demand for compact, serviceable power routes.
Industrial facilities also use bus duct around motor-control centers and process equipment. The U.S. Department of Energy reports that motor-driven systems consume roughly 69% of industrial electricity in the United States. That figure makes voltage drop and heat management practical concerns, not design details. Still, no single bus duct type fits every site. Dust, humidity, fault levels, and future expansion can change the correct choice. Neat classifications sometimes hide messy field conditions.
Installation, Safety, and Maintenance Considerations
A bus duct, or busway, carries electrical power through enclosed copper or aluminum bars. It suits factories, towers, and data centers where loads change frequently. The IEA Electricity 2024 report projects global electricity demand to grow by about 4% annually through 2026. That pressure makes compact distribution systems more attractive, but installation quality still decides performance.
Installers should verify the route, short-circuit rating, enclosure protection, and expansion requirements before lifting sections into place. Every joint needs clean contact surfaces and controlled bolt torque. A loose connection may heat slowly, like a hidden ember. IEC 61439-6 requires design verification for busbar trunking systems, including temperature-rise and short-circuit performance. Local codes remain essential.
Safety starts with isolation, lockout, and voltage testing by qualified workers. NFPA 70E links shock and arc-flash protection to approach boundaries, incident energy, and protective equipment. Labels must match the latest fault study. Maintenance teams should inspect joints, supports, moisture entry, and discoloration during scheduled outages. Infrared scanning can reveal uneven heating, although it cannot replace torque checks or visual inspection. I have seen drawings look perfect while ceiling congestion forced poor bends. That deserves a second review. Unrecorded modifications are another weak point. Keep phase identification, test results, and repair history with the equipment.
